100cc Bicycle Engine Kit

Save 34%
8 reviews

Color: 100cc Silver
Price:
Sale price$229.99 Regular price$349.99

Description

From Pedals to Power—In Just a Few Hours!

“ I bought this kit 6 months ago and it was the first one I’ve ever installed and it was definitely worth it. I just upgraded to a new motor but the original motor still runs amazing. The directions are very thorough and as long as you take care of it it will run great.- Larry S.

Why Get Our 100cc Bicycle Engine Kit?

✅Easy Bike-to-Motor Conversion: Some motor kits are hard to install, need special tools, or don’t fit most bikes. This kit gives your bicycle a full engine setup with just a few tools and a few hours. No need for custom frames or high-end gear—just a standard bike and some space to work.

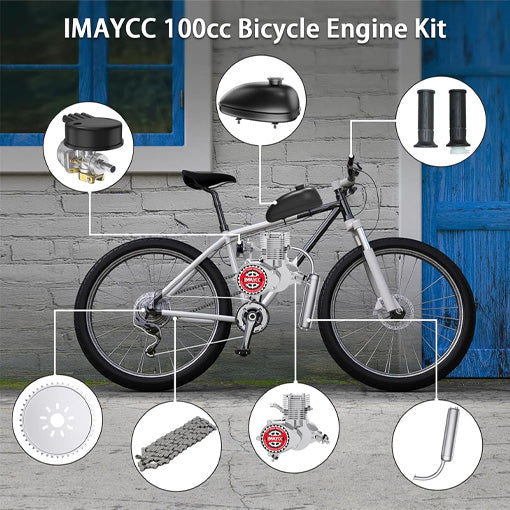

✅All-in-One Kit: Everything you need is in one box. From the engine and fuel tank to the chain and ignition, every piece is included so you don’t need to search for extra parts.

✅Fast and Fuel-Efficient: Get speeds of up to 50km/h and travel long distances with minimal fuel use. It’s a cost-effective way to add real power to your ride.

🌟HOW TO USE

     1. Prep the Bike

  • Choose a sturdy 26” steel-frame bike (preferably with a V-frame and no rear suspension).
  • Remove the chain guard, fenders, or accessories that may interfere with the installation.
  • Deflate the rear tire to make mounting the rear sprocket easier.

     2. Install the Rear Sprocket

  • Position the rubber isolator pads on both sides of the rear spokes.
  • Align the sprocket over the hub and secure it using the included bolts and nuts.
  • Make sure the sprocket is centered and does not wobble.

     3. Mount the Engine

  • Place the engine in the center of the V-frame triangle.
  • Use the U-bolts and mounting bracket to secure the engine to the frame.
  • Ensure the engine is level and tightly fastened.

     4. Attach the Chain

  • Fit the chain over the engine sprocket and the rear wheel sprocket.
  • Use the chain breaker tool to adjust length if needed.
  • Install the chain tensioner on the rear stay and adjust for proper tension (about ½" slack).

     5. Install the Fuel Tank

  • Mount the tank on the top tube using the metal brackets and rubber pads.
  • Tighten the straps and connect the fuel line from the tank to the carburetor.

     6. Install the Carburetor and Air Filter

  • Slide the carburetor onto the intake manifold and secure it with the clamp.
  • Attach the air filter onto the carburetor.

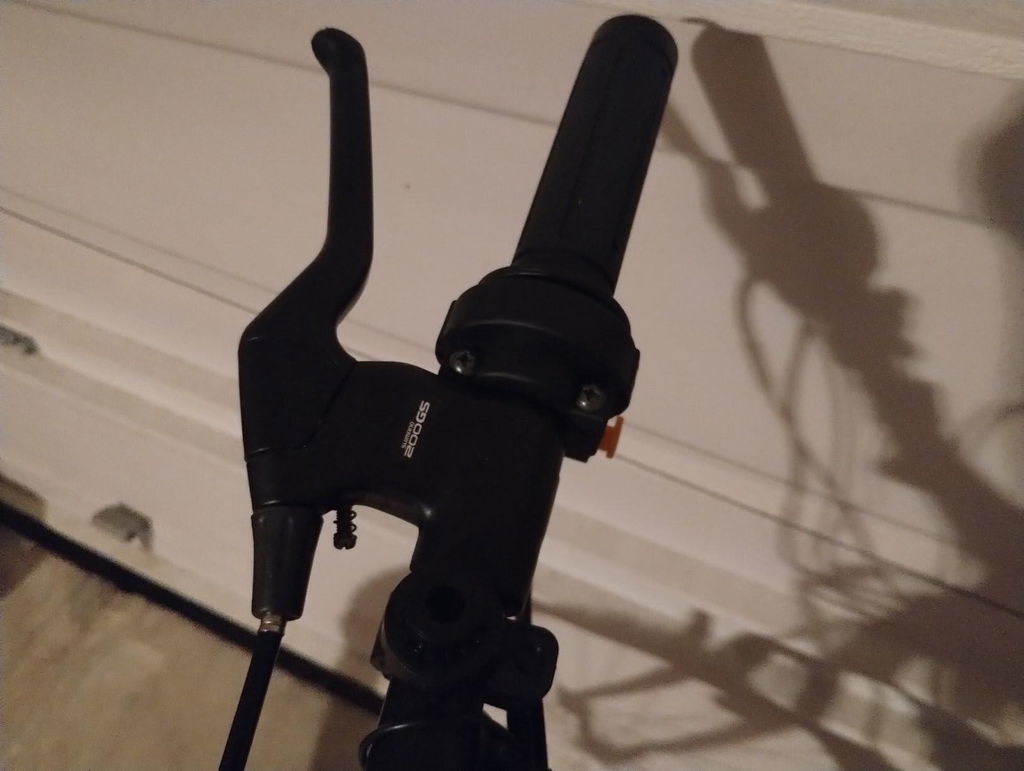

     7. Connect the Throttle and Kill Switch

  • Insert the throttle cable into the carburetor slide and route it to the throttle grip.
  • Secure the throttle and kill switch to the handlebar.
  • Connect the kill switch wires to the CDI unit.

     8. Wire the Ignition (CDI Box)

  • Connect the spark plug wire to the spark plug.
  • Plug the matching wires from the CDI unit to the engine magneto wires.
    • Blue to blue
    • Black to black
    • White (optional for lights or accessories)

     9. Install the Exhaust

  • Mount the muffler to the cylinder exhaust port using the included bolts and gasket.
  • Ensure clearance from pedals and the bike frame.

     10. Final Checks

  • Check all bolts and connections for tightness.
  • Fill the tank with a 16:1 or 20:1 gas-oil mix (break-in period).
  • Test throttle, brakes, and clutch function before starting.

📓FREQUENTLY ASKED QUESTIONS

Q: What kind of bike does this kit work with?

A: It fits most standard 26–28 inch V-frame bicycles with at least 10 inches of clearance between the top bar and bottom bracket.

Q: Is it hard to install?

A: It’s designed for DIY users. Most people complete the install in 2–4 hours with basic tools. A printed manual and online video guides are available for step-by-step help.

⚙️ Specifications:

  • Color: Silver
  • Item Weight: 26.4 lbs.
  • Material: Metal

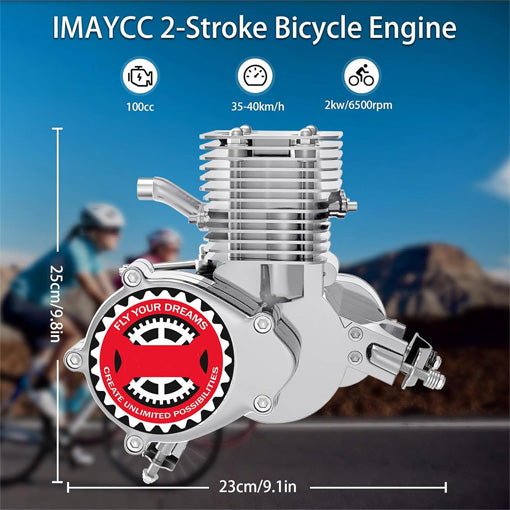

  • Displacement: 100cc
  • Power Output: 2.0kW @ 6500rpm
  • Fuel Ratio: 16:1 (break-in period), 20:1 (after 500km)
  • Fuel Tank Capacity: 3L teardrop-style tank
  • Top Speed: Up to 50km/h (varies by load and terrain)
  • Chain Size: 415 with 110 links
  • Sprocket: 44-tooth
  • Ignition: CDI (Capacitor Discharge Ignition)
  • Cooling System: Air-cooled
  • Minimum Frame Clearance: At least 10 inches between top tube and bottom bracket
  • Starting Method: Pedal start
  • Capacity: 3L
  • Fuel Type: 90# mixture of gasoline and engine oil above 90#
  • Mixing Ratio of Fuel and Engine Oil:
    • 16:1 for new equipment
    • 20:1 the run-in period (after running 500km)
    • Note: Mix thoroughly before adding to the tank.
  • Fuel Consumption: 2.5L/100km

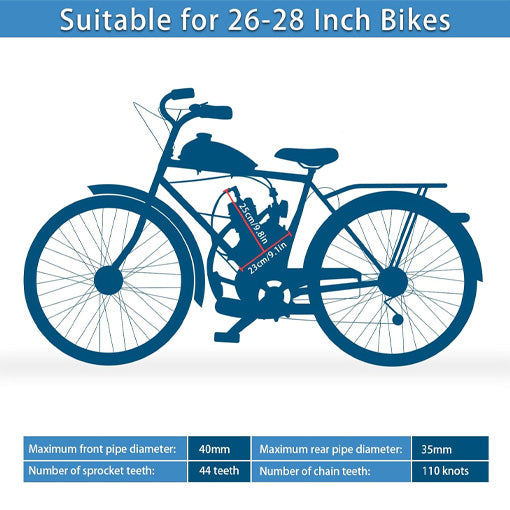

  • Compatibility: Converts most 26–28" V-frame bicycles into a gas-powered ride. Requires at least 10" between top tube and bottom bracket.
  • Product Dimensions: 17.6 x 17.6 x 8.2 inches

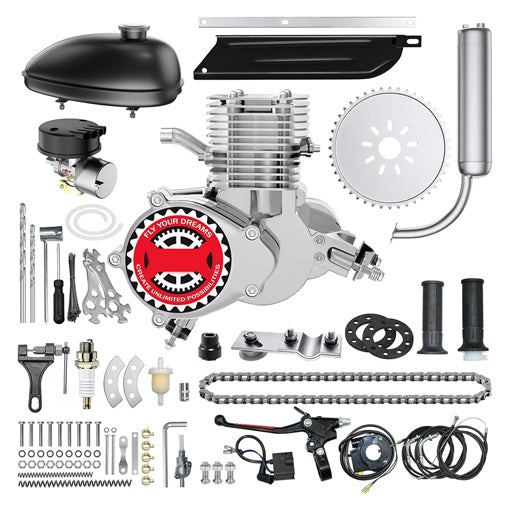

📦Package Inclusions:

  • 1 x Engine

  • 1 x Chain Cover

  • 1 x Fuel Tank

  • 1 x Sprockets

  • 1 x Carburetor

  • 2 x Rubber Pad Cleats

  • 1 x Spark Plug

  • 1 x Fuel Filter

  • 2 x Round Rubber Pads

  • 1 x Clutch Lever Sleeve

  • 1 x Throttle Handle

  • 1 x Spark Plug Wrench

  • 1 x CDI Ignition

  • 1 x Chain

  • 1 x Clutch Lever

  • 1 x Tensioner

  • 1 x 6mm Drill Bit

  • 1 x Exhaust Manifold Mounting Piece

  • 1 x Chain Remover

  • 1 x Kill Switch

  • 2 x Throttle Cable

  • 1 x Clutch Cable

  • 1 x Exhaust Pipe

  • 1 x 4mm Drill Bit

  • 9 x Bolts (with Spring Washers and Nuts)

  • 2 x 3.5mm Multi-Purpose Fish Head Wrenches

  • 3 x Exhaust Manifold Mounting Screws & Nuts

  • 1 x 5mm Hardened L-Type Allen Wrench

  • 1 x 1/4 Short Set of 10mm Internal and External Hexagon Sockets

  • 5 x Fuel Line Clamp

  • 1 x Fuel Line

  • 1 x Small Spring

  • 1 x Large Spring

  • 1 x Exhaust Manifold

  • 1 x Black Phillips Screwdriver

  • 10 x Tie Tape

  • 1 x Fuel Tank Switch

  • 1 x Spark Plug Wrench

  • 1 x Gear Removal Tool
