Switch to Safety When the Power Goes Out!

“Overall, this product works as intended. I was able to use my Ioniq 5's V2L capabilities to power parts of the house, saving a lot of money on batteries / generators. For those of you with electric cars, this is an awesome solution!” - Derrick D.

Why Get Our 30 Amp 6-circuit Pro/Tran Transfer Switch Kit for Generators?

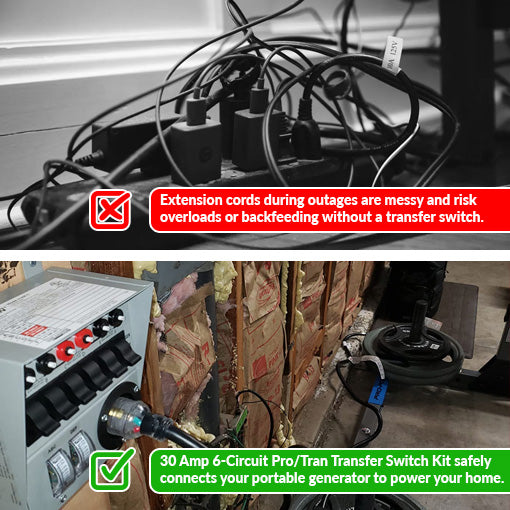

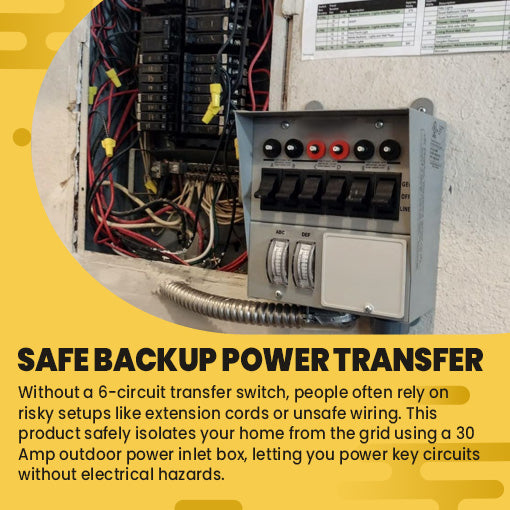

✅Safe Backup Power Transfer: Without a 6-circuit transfer switch, many people rely on unsafe methods like running extension cords through windows or doors, or worse, trying to wire a generator directly into their home’s electrical panel. This product automatically isolates your home’s circuits from the utility grid when the generator is active, thanks to its 30 Amp outdoor power inlet box. That means you can safely power essential parts of your home without risking electrical accidents.

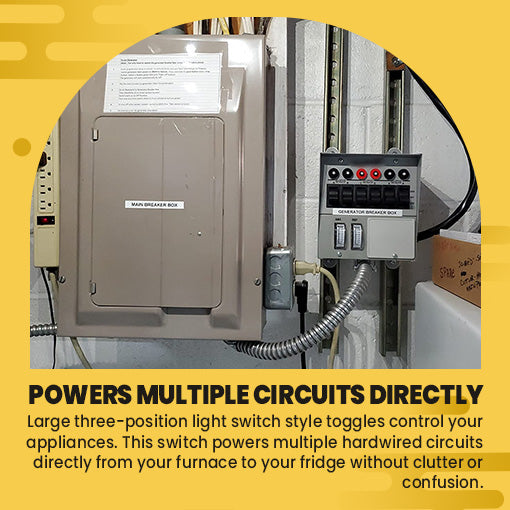

✅Powers Multiple Circuits Directly: Large, three position, light switch style toggles to control your appliances. This switch powers multiple hardwired circuits directly—from your furnace to your fridge—without clutter or confusion.

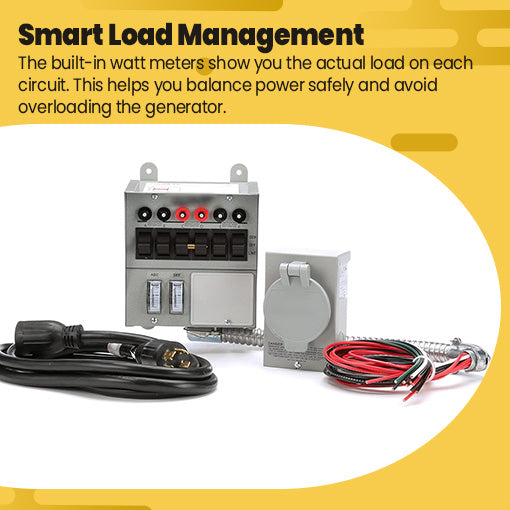

✅Smart Load Management: The built-in watt meters show you the actual load on each circuit. This helps you balance power safely and avoid overloading the generator.

📓FREQUENTLY ASKED QUESTIONS

Q: Can it be used with a portable generator?

A: Yes, this transfer switch kit is designed to be used with a portable generator.

Q: Can it be used with appliances like refrigerators?

A: Yes, this transfer switch kit can be used with appliances like refrigerators.

⚙️ Specifications:

• Color:  Grey

• Item Weight: 13.51 lbs.

• Material: Alloy Steel

• Current Rating: 30 Amp

• Hose Length: 10 Feet

• Power Source Type: Corded-Electric

• Maximum Watts: 7500 W

• Possible Single Pole/Double Pole Combinations: 0-1 DP / 4-6 SP

• Maximum Combined Load @ 125 Volts AC: 60 A

• Maximum Combined Load @ 250 Volts AC: 30 A

• Maximum Load per Circuit from Generator: (2) 20, (4) 15 A

• Maximum Load per circuit from Load Center: 20 A

• Recommended Building Wire Size (runs less than 100’): 10 Gauge with ground

• Wattmeters: Yes

• Number of Knockouts Available: 1/2" or 3/4" 6

• Power Inlet Box: Match PB30

• Cabinet Dimensions: 7 1/2" x 7" x 4 1/2"

• Cabinet Type: (NEMA) 1

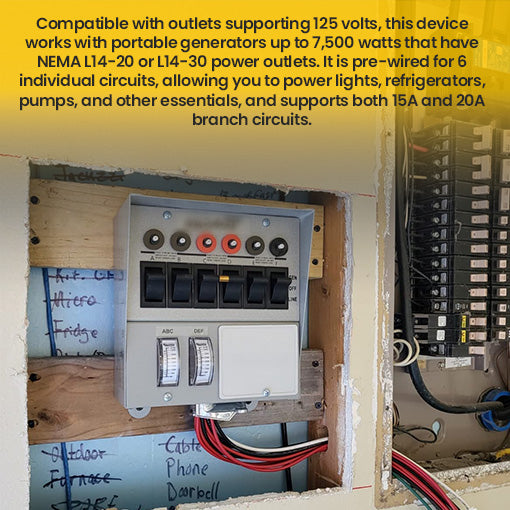

• Compatibility:  Compatible with outlets that support 125 volts. Works with portable generators up to 7,500 watts, equipped with either NEMA L14-20 or L14-30 power outlets. Pre-wired for 6 individual circuits, allowing you to power lights, refrigerators, pumps, and other essentials. Supports both 15A and 20A branch circuits.

• Product dimensions: 4.5 x 7 x 7.5 inches

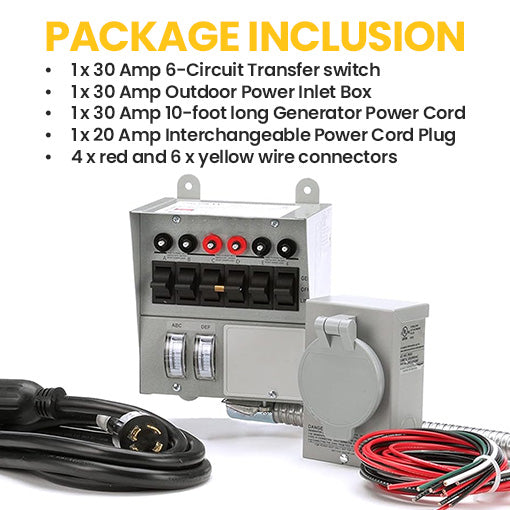

📦Package Inclusions:

• 1 x 30 Amp 6-Circuit Transfer switch

• 1 x 30 Amp Outdoor Power Inlet Box

• 1 x 30 Amp 10-foot long Generator Power Cord

• 1 x 20 Amp Interchangeable Power Cord Plug

• 4 x red and 6 x yellow wire connectors

• Installation and Operating Instruction
