Complete Hydraulic Diagnostics for Any System!

"I was constantly blind-guessing hydraulic issues across my mixed fleet until my backhoe completely lost power mid-job. This hydraulic pressure test kit instantly connected to all my varying ports, providing complete diagnostics to catch a failing pump before it ruined my week!" -Lorenz O.

Why Get Our Hydraulic Pressure Test Kit with 5 Gauges?

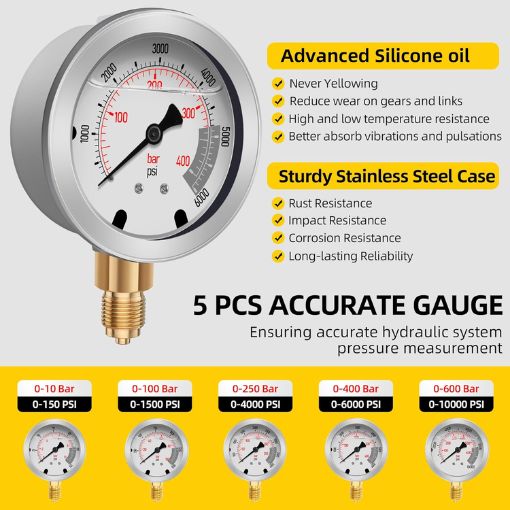

✅ Complete System Diagnostics: Juggling multiple single-gauge testers wastes time and risks inaccurate readings. This kit delivers complete hydraulic diagnostics for any system using five purpose-built gauges (10 to 10,000 PSI), ensuring you always have the exact tool to confidently test your entire fleet.

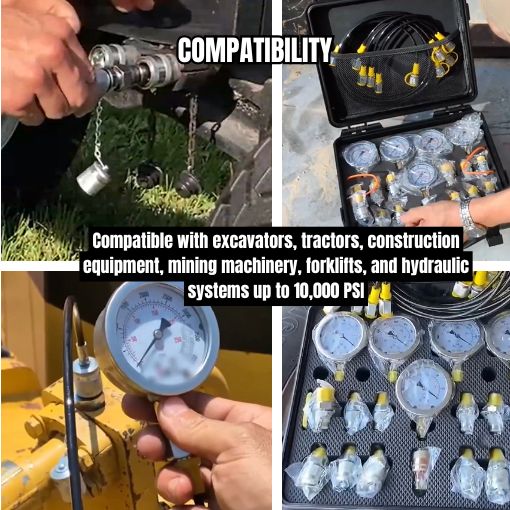

✅ Universal Fleet Compatibility: Managing a mixed fleet means dealing with frustratingly different hydraulic specs. Armed with 13 specialized couplings and 14 tee connectors, including a quick connector for major brands, this kit seamlessly connects to everything from vintage tractors to modern skid steers without aftermarket adapters.

✅ Guarantees Diagnostic Safety: Standing too close to a compromised hydraulic system exposes you to dangerous hose ruptures and toxic fluid sprays. Featuring five extra-long, 5.4-foot high-pressure hoses, this kit allows you to verify system performance from a safe distance, protecting you during every diagnostic check.

📓 FREQUENTLY ASKED QUESTIONS

Q: What's the maximum pressure this kit measures?
A: 600 bar (10,000 PSI) covers all industrial equipment including excavators, mining machinery, and extreme-pressure systems.

Q: Do I need separate gauges for different equipment?
A: No, one kit with five gauges tests all equipment types (tractors, excavators, loaders, backhoes, compressors).

⚙️ Specifications:

• Weight: 15.4 lbs
• Material: 304 stainless steel (gauge casing), copper (threaded joints), carbon steel (couplings/tee connectors)
• Compatibility: Works with all hydraulic systems using standard metric (M), BSP (G), NPT, UNF, and C*T/C*S*/J*h* D*er* quick-connect threads. The 13 test couplings and 14 tee connectors cover 99% of industrial hydraulic equipment (excavators, tractors, loaders, backhoes, compressors, pumps, motors) used in construction, mining, agriculture, and heavy equipment operations.

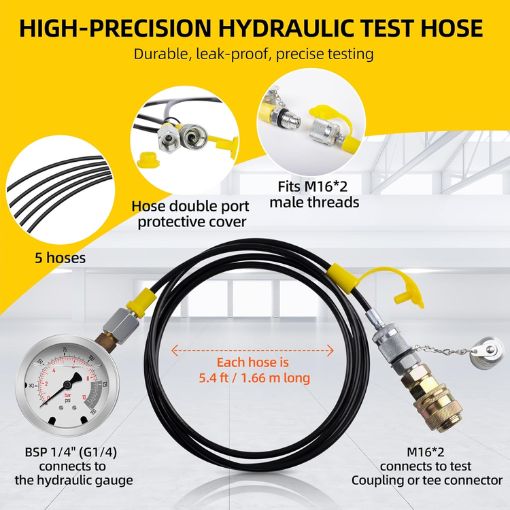

  ⚠️ Note: The five hoses with dual-end female connectors (M16×2 and G 1/4") attach directly to the kit couplings and plug into your equipment's hydraulic ports.
• Product Dimensions: 12.8" × 12.2" × 4.53"

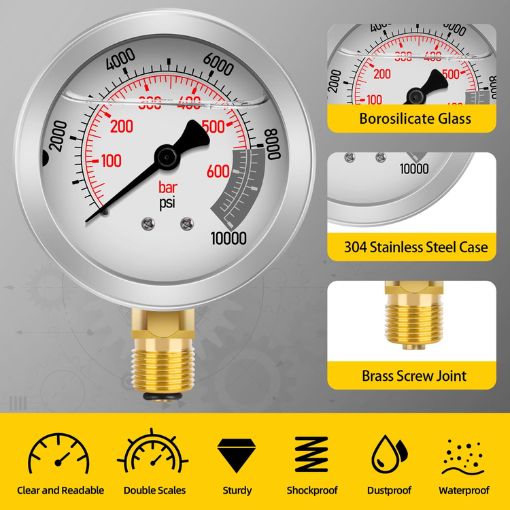

• Gauge Fill Medium: High-grade glycerin (non-yellowing, vibration-reducing, clarity-maintaining)
• Operating Temperature Range: -40°C to +120°C (-40°F to +248°F)
• Hose Pressure Rating: High-pressure rated (suitable for 10,000 PSI systems)
• Resistance Properties: Rust, shock, water, dust, corrosion resistance

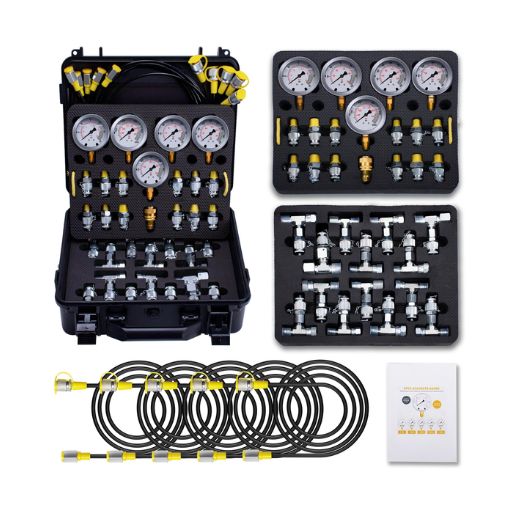

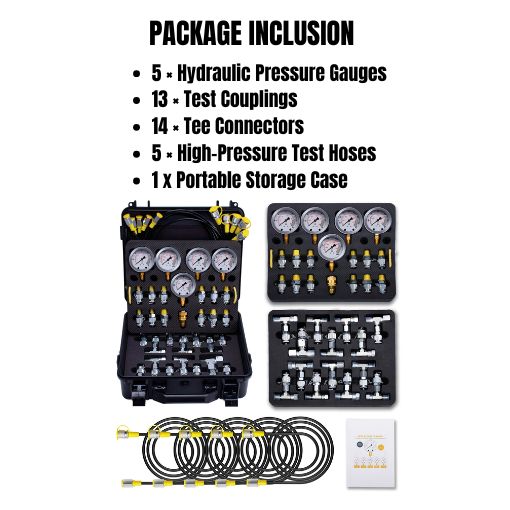

📦 Package Inclusions:

• 5 × Hydraulic Pressure Gauges
• 13 × Test Couplings
• 14 × Tee Connectors
• 5 × High-Pressure Test Hoses
• 1 × Portable Storage Case
