Hydraulic Top Link Cat. 1-1 with Locking Block 20 7/8” - 31 7/8”

Save 27%
25 reviews
Price:
$269.99 $369.99

Description

Effortless Tractor Control!

"This hydraulic top link completely transformed how I work with my tractor — no more oil leaks, no more manual adjustments. It locks in place perfectly and handles heavy loads without breaking a sweat. Absolutely worth every penny!" - Jones Reid.

Why Get Our Hydraulic Top Link Cat. 1-1 with Locking Block 20 7/8” - 31 7/8”?

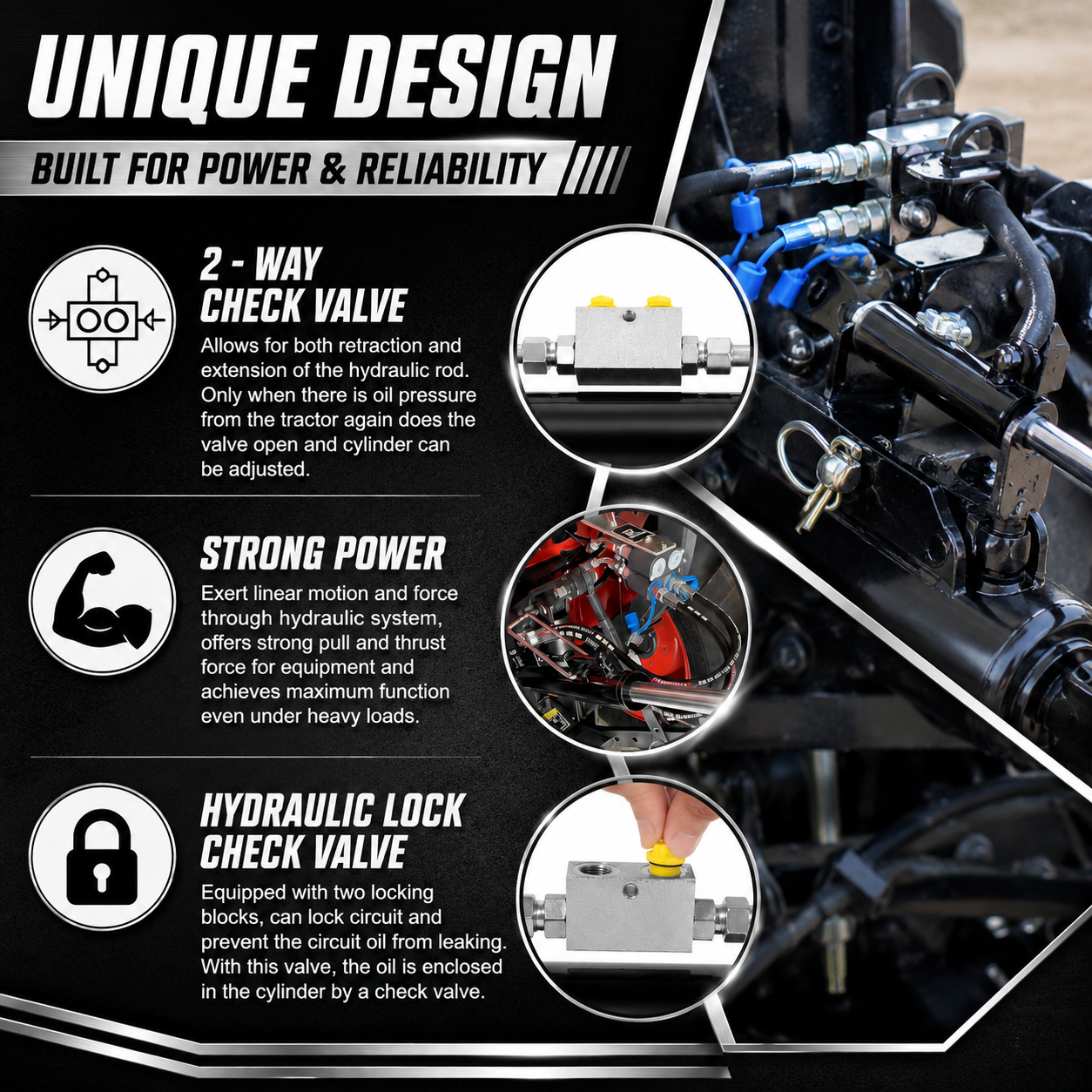

✅ Leak-Free Locking Performance: Equipped with a Locking Block Check Valve, this top link seals oil inside the cylinder to prevent evaporation, air leakage, and piston blockage. Once set, it stays locked until hydraulic pressure is reapplied, giving you full, reliable control every time.

✅ Two-Way Hydraulic Control: The Two-Way Check Valve enables both retraction and extension of the hydraulic rod with precision. The double-acting control valve works with the integrated locking block to keep the cylinder stable under load, making daily tractor tasks smoother and safer.

✅ Heavy-Duty Power Without the Bulk: The double-acting hydraulic cylinder operates at up to 20 MPa working pressure, delivering a pull force of 5,070 lbs and a thrust force of 7,716 lbs — no mechanical gears or levers needed. It handles maximum performance even under the heaviest loads.

⚙️ Specifications:

  • Color: Black
  • Item Weight: 21.3 pounds
  • Material: Steel
  • Pull Force: 5,070 lbs (2.3 tons)
  • Thrust Force: 7,716 lbs (3.5 tons)
  • Operating Pressure: 180 bar (20 MPa)
  • Max Hydraulic Pressure: 250 bar (30 MPa)
  • Stroke: 1.02 inches (28 cm)
  • Rod Diameter: 1.18 inches (3 cm)
  • Bore Diameter (Inner): 1.96 inches (5 cm)
  • Bore Diameter (Outer): 2.48 inches (6.3 cm)

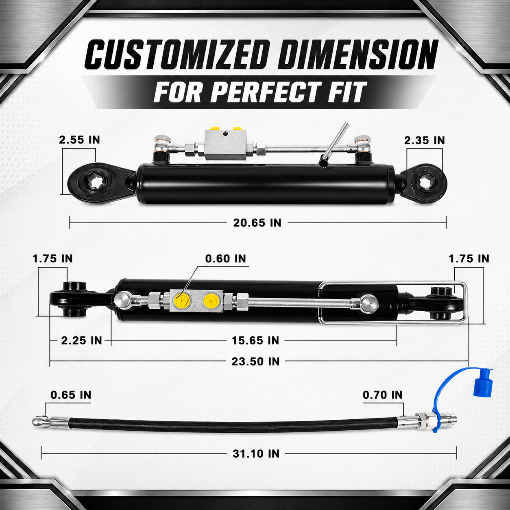

  • Minimum Length (Fully Collapsed): 20 7/8 inches (53 cm)
  • Maximum Length (Fully Extended): 31 7/8 inches (81 cm)

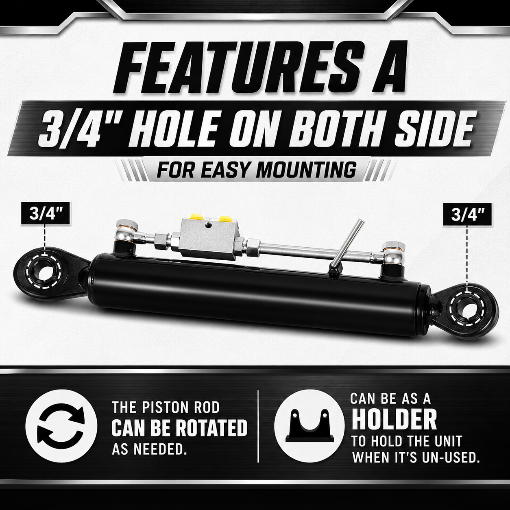

  • Pin Hole Diameter: 0.78 inches (2 cm)
  • Port Size: M14 x 1.5
  • Compatibility: Directly fits Cat. 1 and Class 1 & 2 tractors and excavators
  • Product Dimensions: 23.5 x 5.75 x 5 inches

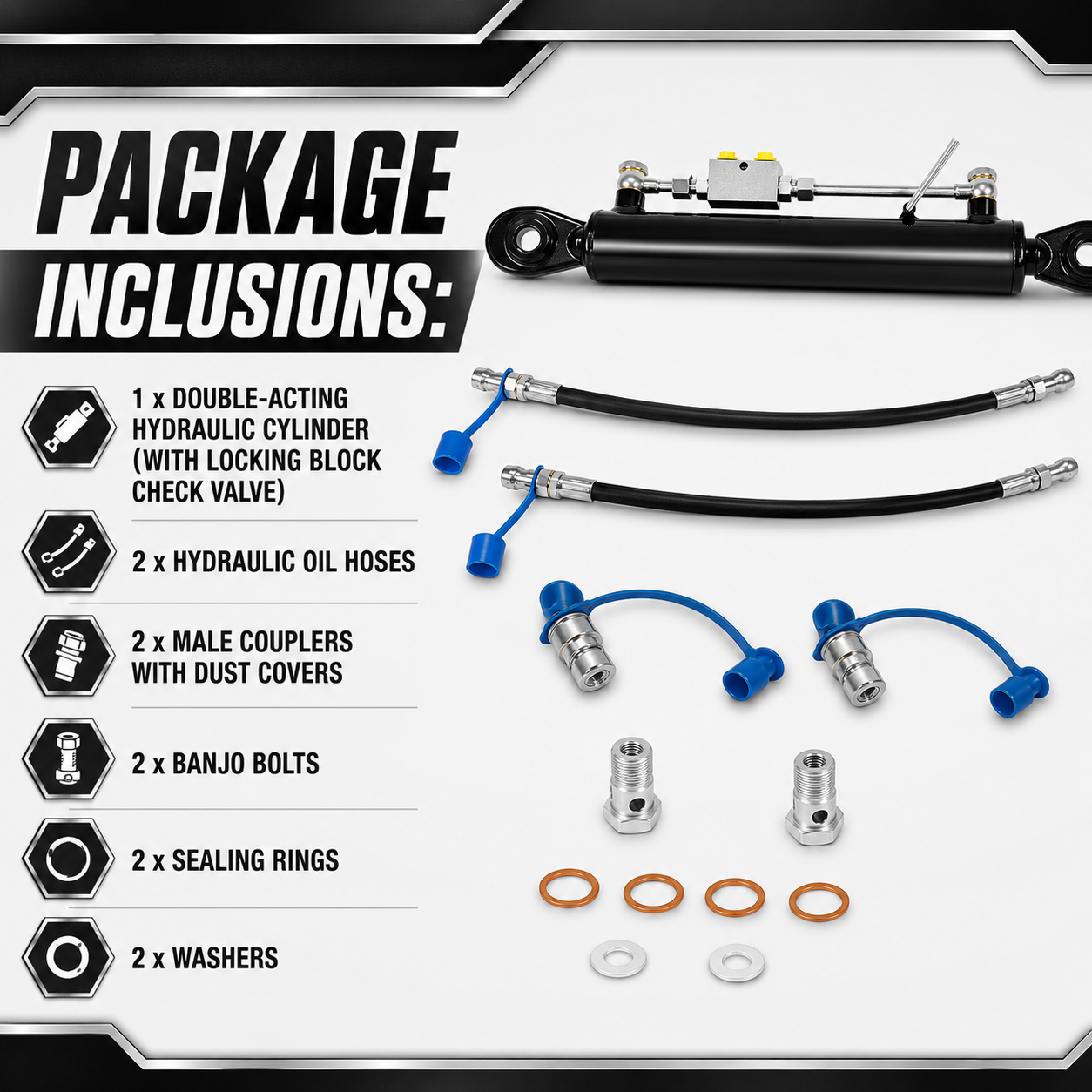

📦 Package Inclusions:

  • 1 x Double-Acting Hydraulic Cylinder (with Locking Block Check Valve)
  • 2 x Hydraulic Oil Hoses
  • 2 x Male Couplers with Dust Covers
  • 2 x Banjo Bolts
  • 2 x Sealing Rings
  • 2 x Washers
