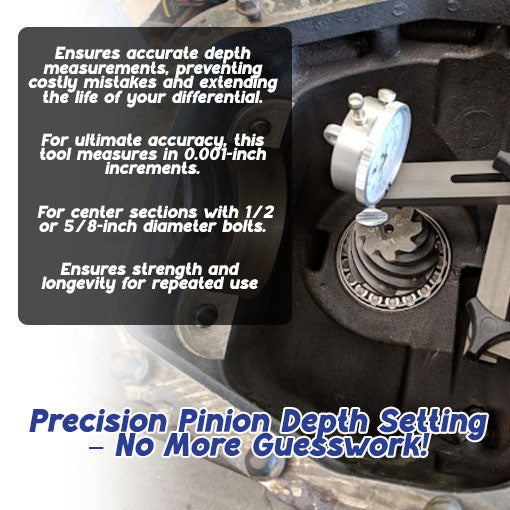

Precision Pinion Depth Setting – No More Guesswork!

“This tool made setting up my ring and pinion a breeze. The accuracy is spot on, and the build quality is top-notch. Highly recommended for anyone working on differentials!” – John.



Why Get Our Ring & Pinion Setup Tool Kit?

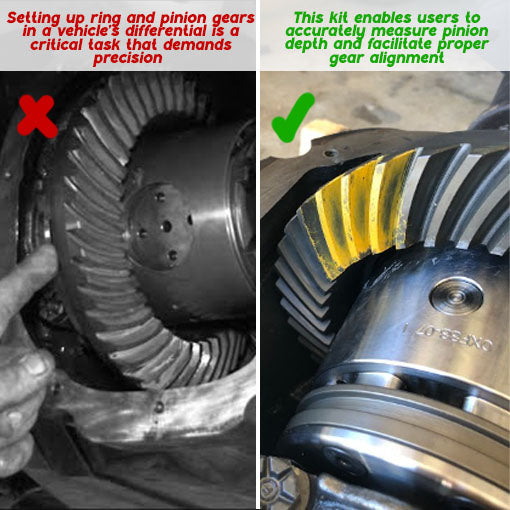

✅ Perfect Pinion Depth Every Time: Improper pinion depth can cause gear whining, premature wear, and failure. Our setup tool ensures accurate depth measurements, preventing costly mistakes and extending the life of your differential.

✅ Precision Measurements for Optimal Performance: Designed for ultimate accuracy, this tool measures in 0.001-inch increments, ensuring perfect gear alignment for smooth and reliable operation.

✅ Versatile Compatibility for Various Housings: Designed for center sections with 1/2-inch diameter bolts, it can also be used on differential housings with 5/8-inch bolts by holding the fixture in place during measurement.

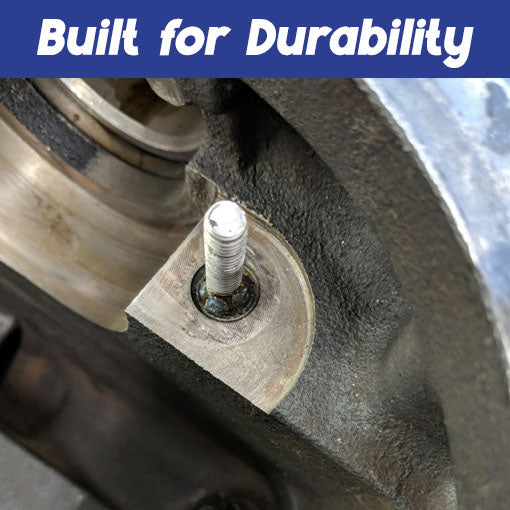

✅ Premium Hard-Anodized Aluminum Construction: Built for durability, our tool is made from high-quality hard-anodized aluminum, ensuring strength and longevity for repeated use without compromising precision.

📓FREQUENTLY ASKED QUESTIONS

Q: Is this tool compatible with all differential housings?

A: This tool is specifically designed for center sections with 1/2-inch diameter bolts but can also be used with 5/8-inch bolts by holding it in place manually.

Q: How accurate is this tool?

A: The tool measures in precise 0.001-inch increments, ensuring the most accurate pinion depth settings possible.

🌟REMINDER

• Always double-check your measurements before final installation.
• Use proper tools and follow manufacturer guidelines for best results.
• Ensure the tool is properly positioned for accurate readings.

⚙️ Specifications:

• Color: Dark gray
• Item Weight: ‎2.86 pounds
• Material: Hard-anodized aluminum
• Measurement Accuracy: 0.001-inch increments
• Compatibility: Works with center sections featuring 1/2-inch diameter bolts, adaptable to 5/8-inch housings

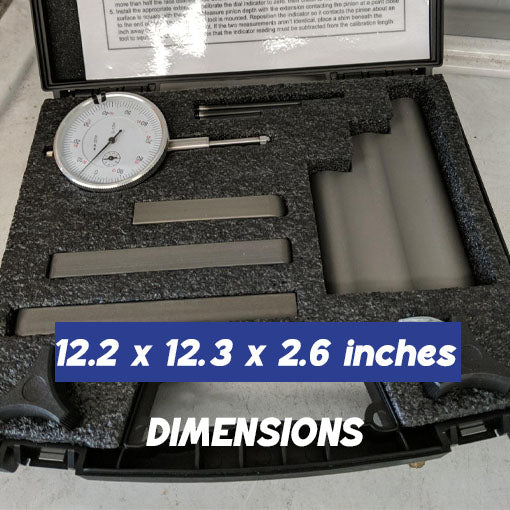

• Product dimensions:  12.2 x 12.3 x 2.6 inches

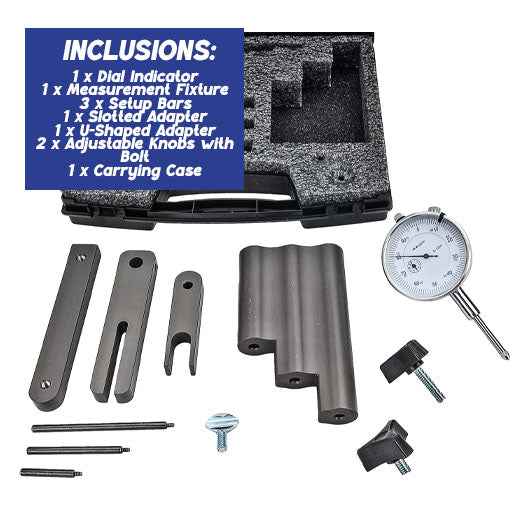

📦 Package Inclusion:

• 1 x Dial Indicator
• 1 x Measurement Fixture
• 3 x Setup Bars
• 1 x Slotted Adapter
• 1 x U-Shaped Adapter
• 2 x Adjustable Knobs with Bolts
• 1 x Carrying Case
